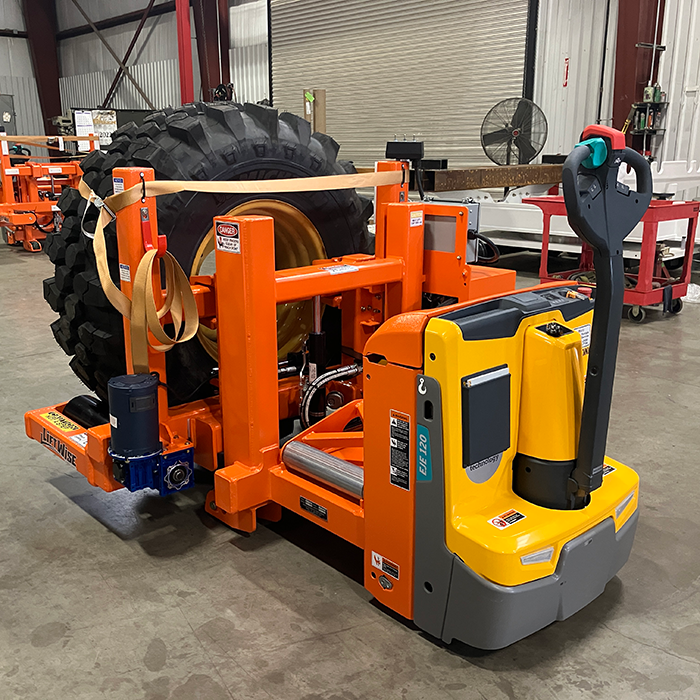

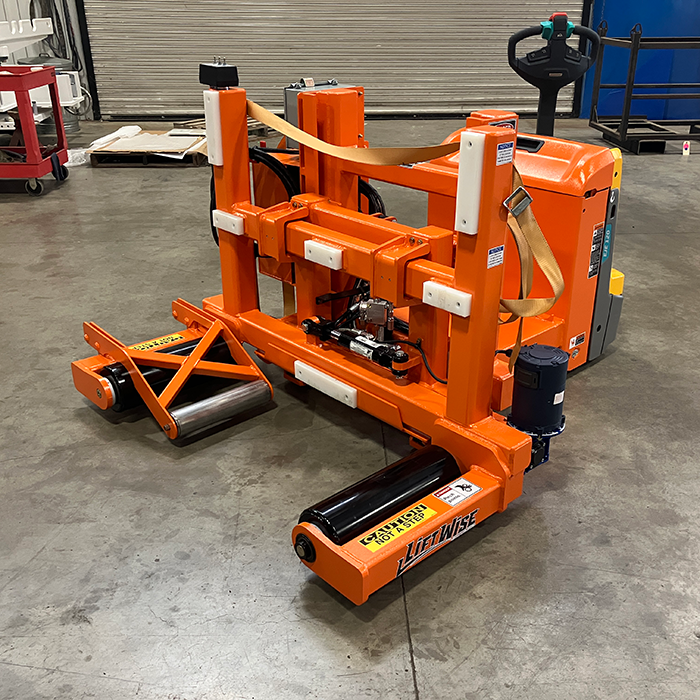

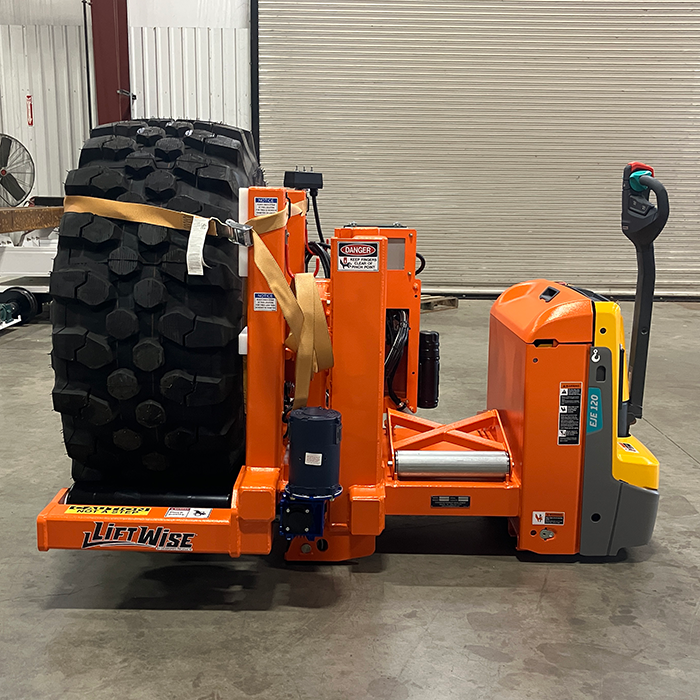

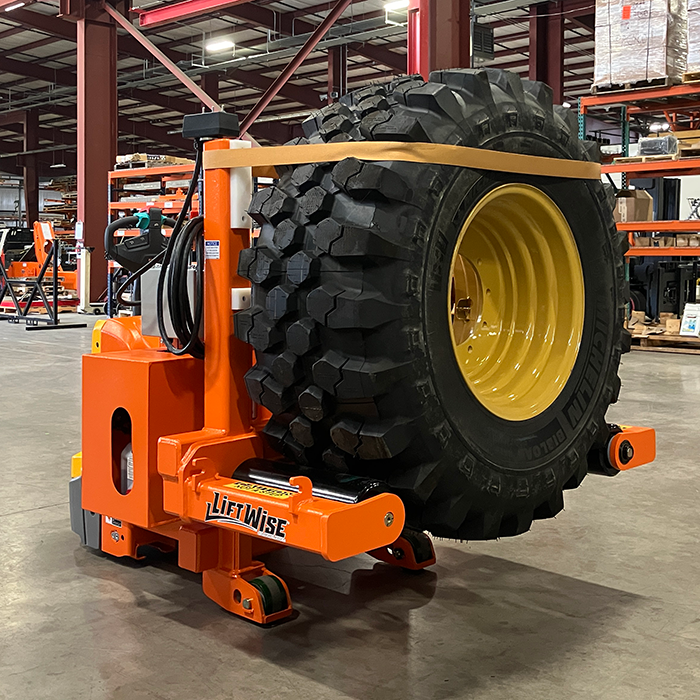

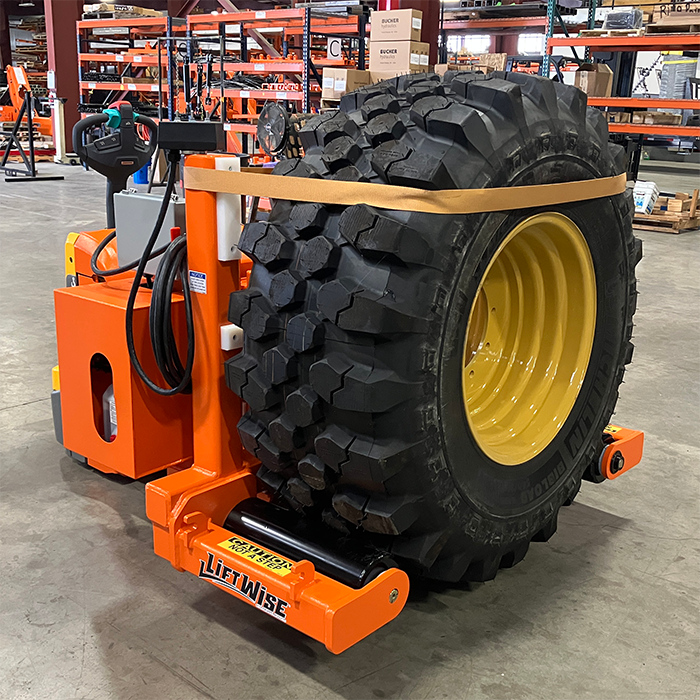

SP600S Tire Handler
The SP600S Series Tire Handler is a high capacity piece of equipment that can mount tires ranging in size from 48” up to 76” in diameter and weighing up to 600 pounds.
Specifications and information
The tire can be safely transported using the maneuverability and familiar controls of a pallet truck. The tire can then be precisely positioned onto the truck by one person using the lift, side-shift, and rotation functions on the hand-held, tethered controller. The tire is secured using a cinching strap.
- Models: SP600S
- Capacity: up to 600 lbs.
- Max. Tire Diameter: 76’’
- Min. Tire Diameter: 48’’
- Lift Height: 14’’
- Side Shift: +/-3’’
- Tire Rotation: Continuous
- Pendant Style Controller
- Battery Powered
