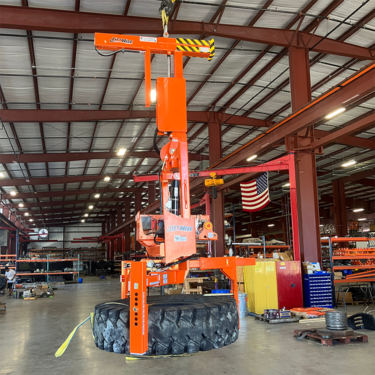

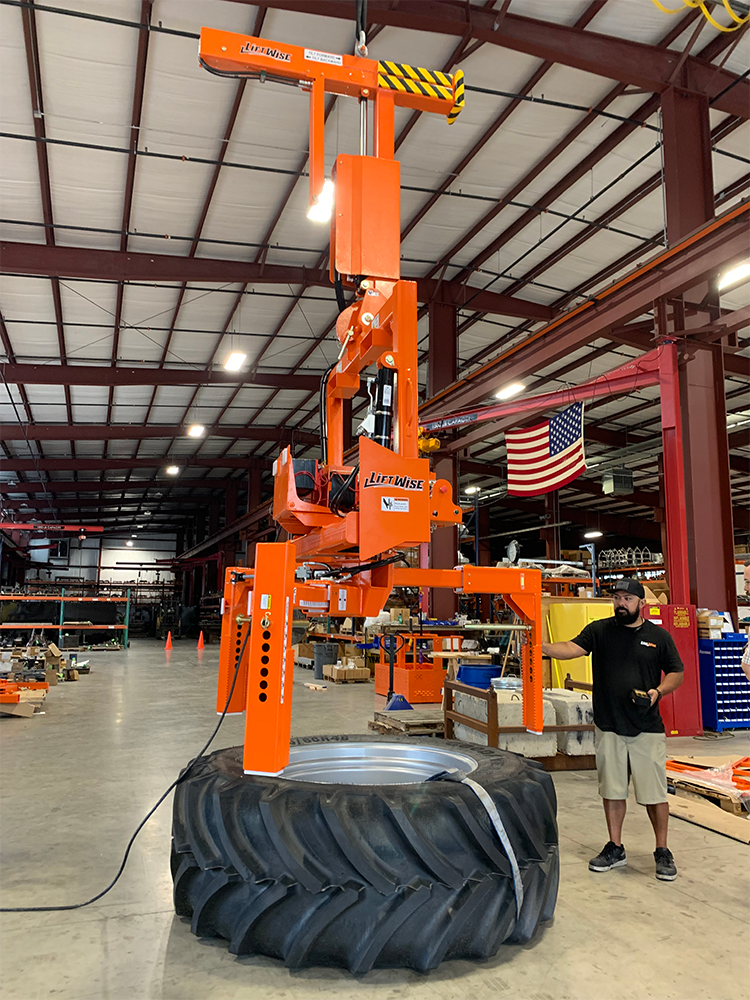

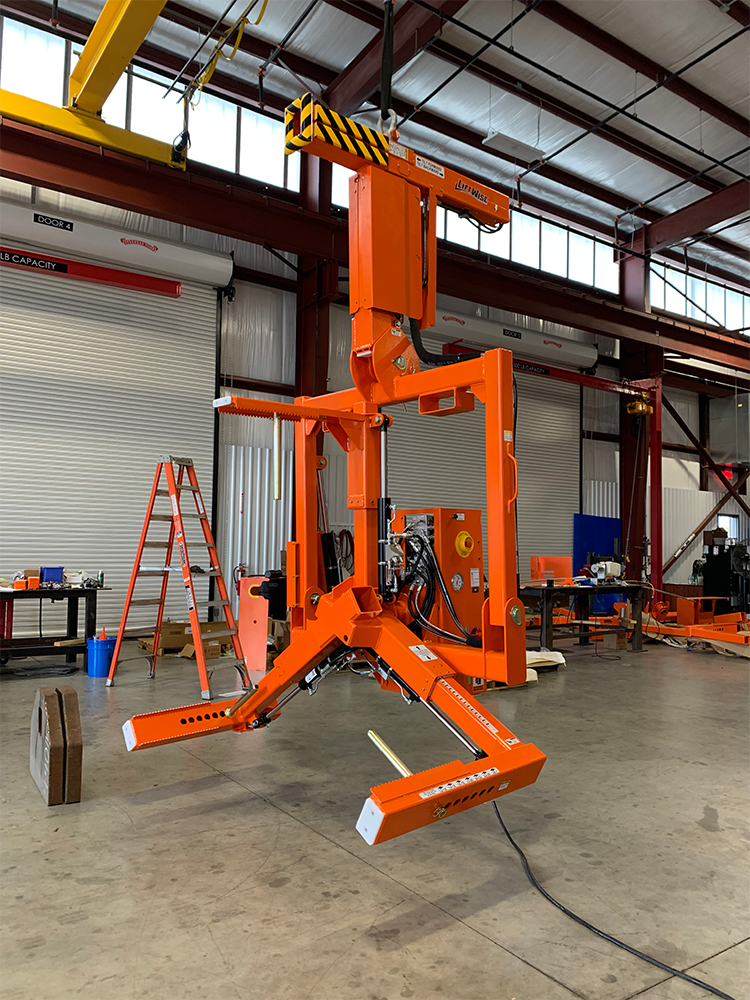

Hanging Tire Handler 2300
The Hanging Tire Handler 2300 is a high capacity piece of equipment for handling, controlling and maneuvering tires for installation, removal or maintenance.
Specifications
- Load Capacity: 2,300 lbs.
- Tire Diameter: 58-83”
- Max. Tire Width: 35.4”
- Tilt from Horizontal to Vertical: 90 degrees
- Rotation from Bolt Pattern Alignment: +/- 25 degrees
FEATURES
- 5 hydraulically powered functions
- Operated by tethered controller
- Buit-in fork pockets
- Adjustable pins to ensure correct tire orientation
- Lights indicating sufficient clamping pressure
- Onboard battery charger included
- 24V maintenance free battery system
- Self-contained hydraulic power unit (HPU)
- Operation, maintenance and parts manual included
