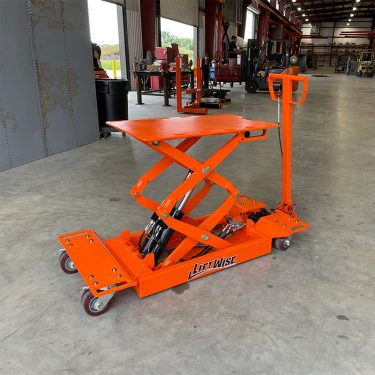

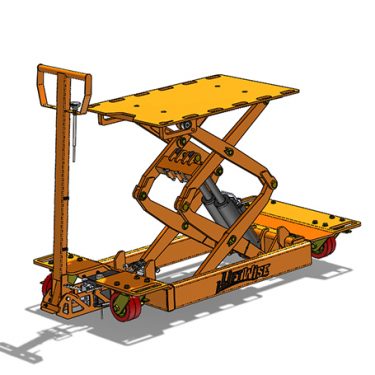

LiftMaster 7000
The LiftMaster 7000 is a versatile product that can be used to lift or lower a variety of parts into position for maintenance and other needs.
Features & Specifications
The LiftMaster 7000 has a low-profile and compact design to fit into tight spaces. Swivel front/rear and locking rear casters provide even greater maneuverability. Pump the handle to raise and lower the table.
- Model: LM7000
- Load Capacity Lowered:(10.5” to 13.5”): 5,500lb
- Load Capacity Raised: (13.5” to MAX”): 7,000lb
- Weight: 700lb
- Height (Stowed): 10.5”
- Height (Max): 37”
- Width: 32”
- Length (Handle Raised): 72”
- Wheel Diameter/Width: 6”
The LiftMaster 7000 can be equipped with modified capacities and features to meet your applications.
optional transfer table top
- Allows for 6” of rotation and movement in any direction.
- 4,000lb load capacity
- Movement Range: 2” side to side; 3.88” front to back
- Perforated sections allow for fine positioning w/small pry bar.
- Bolt-on assembly (unbolts & stores quickly)
- .63” H X 42” L X 26.5” W
